RK3568系列17——RK628D转LVDS屏幕配置

发表于 更新于 分类于 ， Waline： 阅读次数： 本文字数： 6.1k 阅读时长 ≈ 15 分钟

　　由于项目有三屏异显的要求，因此必须把RK3568的三路VOP都利用起来，而VOP-Port2只能输出LVDS或RGB888或BT1120/656格式的信号，因此采用一块RK628D视频桥接芯片将RGB888信号转换为其他信号，项目上选择转换为双路LVDS信号。

RK628D芯片配置

原理图分析

  • RK628D_I2CSEL：被拉低，因此I2C地址为0x50(拉高为0x51)
  • 芯片工作时钟24Mhz由RK3568给出

配置要点

  • 供电使能脚：高电平有效，默认拉低
  • 复位脚(RESET)：低电平有效，默认拉高
  • 中断脚(INT)：高电平有效，默认浮空
  • 工作时钟：由RK3568的REFCLK_OUT(GPIO0_A0)给出

DTS配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81

&pinctrl {
    rk628 {
        rk628_int: rk628-int {
            rockchip,pins = <4 RK_PC3 RK_FUNC_GPIO &pcfg_pull_none>;
        };
        rk628_enable: rk628-enable {
            rockchip,pins = <0 RK_PD6 RK_FUNC_GPIO &pcfg_pull_down>;
        };
        rk628_reset: rk628-reset {
            rockchip,pins = <4 RK_PD2 RK_FUNC_GPIO &pcfg_pull_up>;
        };
    };
};

&i2c3 {
    status = "okay";
    clock-frequency = <400000>;

    rk628: rk628@50 {
        status = "okay";
        reg = <0x50>;
        interrupt-parent = <&gpio4>;
        interrupts = <RK_PC3 IRQ_TYPE_LEVEL_HIGH>;
        enable-gpios = <&gpio0 RK_PD6 GPIO_ACTIVE_HIGH>;
        reset-gpios = <&gpio4 RK_PD2 GPIO_ACTIVE_LOW>;

        // 如果时钟信号由外部晶震给出，不需要这两行配置，pinctrl不需要&refclk_pins
        assigned-clocks = <&pmucru CLK_WIFI>;
        assigned-clock-rates = <24000000>;

        pinctrl-names = "default";
        pinctrl-0 = <&refclk_pins &rk628_int &rk628_enable &rk628_reset>;
    };
};

// 引用rk628.dtsi必须在声明rk628之后
#include <arm/rk628.dtsi>

// 如果时钟信号由外部晶震给出，直接删除这一块配置
&rk628_xin_osc0_func {
    compatible = "fixed-factor-clock";
    clocks = <&pmucru CLK_WIFI>;
    clock-mult = <1>;
    clock-div = <1>;
};

&rk628_combrxphy {
    status = "okay";
};

&rk628_combtxphy {
    status = "okay";
};

&rk628_post_process {
    pinctrl-names = "default";
    pinctrl-0 = <&rk628_vop_pins>;
    status = "okay";

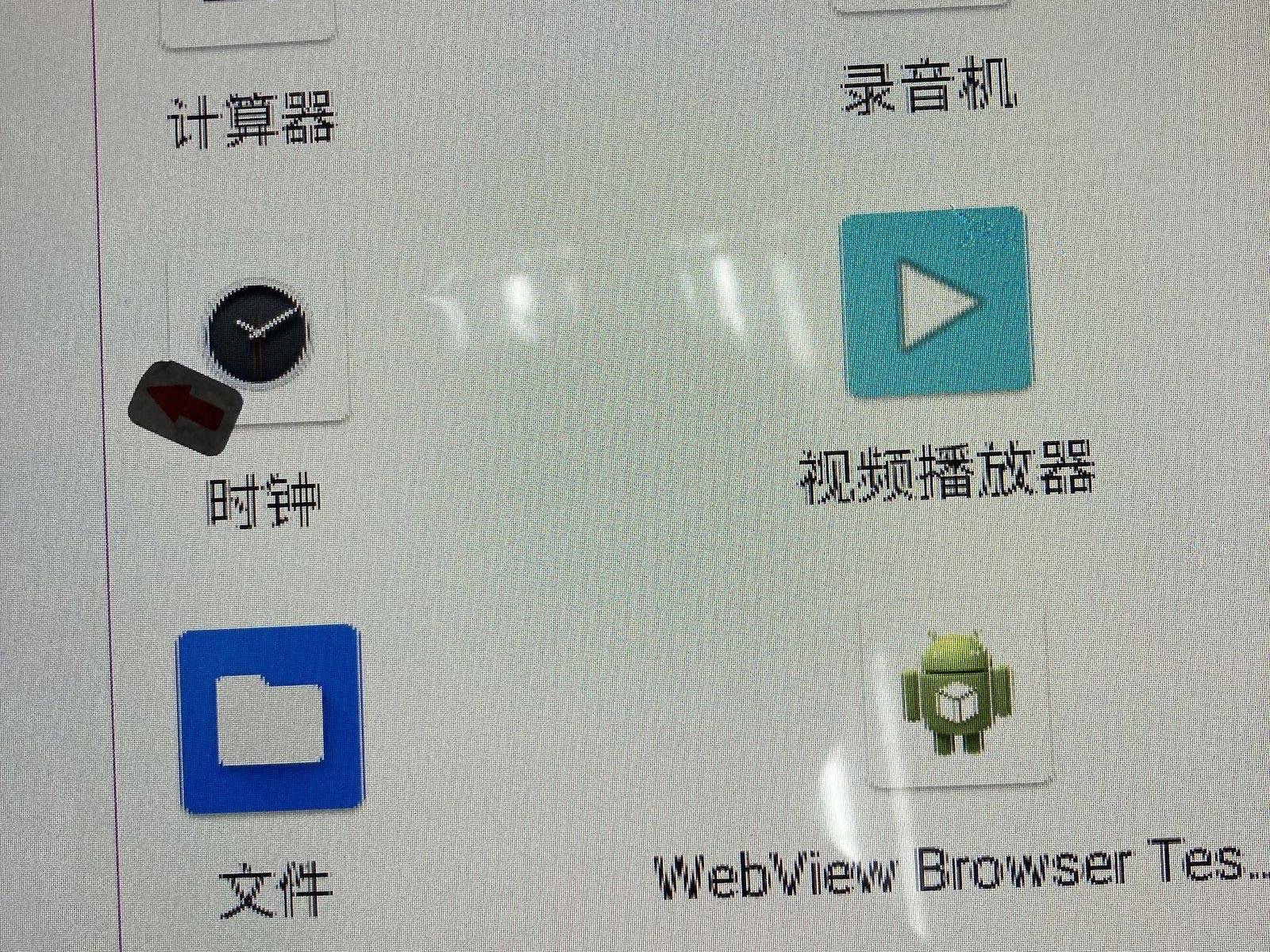

    // 极性配置，RGB转LVDS方案，要配置此项，否则画面会显示鬼影，如图1所示
    mode-sync-pol = <0>;

    ports {
        #address-cells = <1>;
        #size-cells = <0>;

        port@0 {
            reg = <0>;
            post_process_in_rgb: endpoint {
                remote-endpoint = <&rgb_out_post_process>;
            };
        };

        port@1 {
            reg = <1>;
            post_process_out_lvds: endpoint {
                remote-endpoint = <&lvds_in_post_process>;
            };
        };
    };
};

RGB信号输入配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

&rgb_in_vp2 {
    status = "okay";
};

&rgb {
    status = "okay";
    pinctrl-names = "default";
    pinctrl-0 = <&lcdc_ctl>;

    ports {
        port@1 {
            reg = <1>;

            rgb_out_post_process: endpoint {
                remote-endpoint = <&post_process_in_rgb>;
            };
        };
    };
};

// RGB转LVDS不能开route_rgb显示内核图标，否则会卡在u-boot阶段
&route_rgb {
    status = "disabled";
};

LVDS信号输出配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

&rk628_lvds {
    status = "okay";
    rockchip,link-type = "dual-link-odd-even-pixels"; // 如果是单路LVDS输出，删除此行

    ports {
        #address-cells = <1>;
        #size-cells = <0>;

        port@0 {
            reg = <0>;
            lvds_in_post_process: endpoint {
                remote-endpoint = <&post_process_out_lvds>;
            };
        };

        port@1 {
            reg = <1>;
            lvds_out_panel: endpoint {
                remote-endpoint = <&panel_in_lvds>;
            };
        };
    };
};

LVDS屏幕配置

　　关于屏幕参数配置请参考前文《RK3568系列14——屏幕参数公共配置》。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94

#include <dt-bindings/display/media-bus-format.h>

/ {
   lvds-panel {
        compatible = "simple-panel";
        power-supply = <&vcc5v0_lvds_panel>;
        enable-gpios = <&gpio4 RK_PA0 GPIO_ACTIVE_HIGH>;
        pinctrl-names = "default";
        pinctrl-0 = <&lvds_panel_enable>;
        backlight = <&backlight>;

        prepare-delay-ms = <10>;
        enable-delay-ms = <50>;
        disable-delay-ms = <50>;
        unprepare-delay-ms = <10>;
        reset-delay-ms = <500>;
        init-delay-ms = <500>;

        // LVDS屏幕要额外配置屏幕的物理宽高
        width-mm = <476>;
        height-mm = <268>;

        bus-format = <MEDIA_BUS_FMT_RGB888_1X7X4_SPWG>;
        data-mapping = "vesa-24";

        display-timings {
            native-mode = <&lcd_boe_hr215wu1_120>;
            lcd_boe_hr215wu1_120: lcd-boe-hr215wu1-120 {
                clock-frequency = <149000000>;
                hactive = <1920>;
                hfront-porch = <140>;
                hback-porch = <70>;
                hsync-len = <70>;
                vactive = <1080>;
                vfront-porch = <24>;
                vback-porch = <12>;
                vsync-len = <9>;
                hsync-active = <0>;
                vsync-active = <0>;
                de-active = <0>;
                pixelclk-active = <0>;
            };
        };

        port {
            panel_in_lvds: endpoint {
                remote-endpoint = <&lvds_out_panel>;
            };
        };
    };

    vcc5v0_lvds_panel: vcc5v0-lvds-panel{
        compatible = "regulator-fixed";
        regulator-name = "vcc5v0_lvds";
        regulator-min-microvolt = <5000000>;
        regulator-max-microvolt = <5000000>;
        vin-supply = <&vcc5v0_sys>;
        regulator-boot-on;
        regulator-state-mem {
            regulator-off-in-suspend;
        };
    };

    vcc5v0_lvds_backlight: vcc5v0-lvds-backlight {
        compatible = "regulator-fixed";
        regulator-name = "vcc5v0_lvds_backlight";
        regulator-min-microvolt = <5000000>;
        regulator-max-microvolt = <5000000>;
        vin-supply = <&vcc5v0_lvds_panel>;
        regulator-boot-on;
        regulator-state-mem {
            regulator-off-in-suspend;
        };
    };
};

&pinctrl {
    lvds {
        lvds_panel_enable: lvds-panel-enable {
            rockchip,pins = <4 RK_PA0 RK_FUNC_GPIO &pcfg_pull_down>;
        };
        lvds_backlight_enable: lvds-backlight-enable {
            rockchip,pins = <4 RK_PC4 RK_FUNC_GPIO &pcfg_pull_up>;
        };
    };

&backlight {
    status = "okay";
    pwms = <&pwm14 0 25000 1>;
    power-supply = <&vcc5v0_lvds_backlight>;
    enable-gpios = <&gpio4 RK_PC4 GPIO_ACTIVE_LOW>;
    pinctrl-names = "default";
    pinctrl-0 = <&lvds_backlight_enable>;
};

遇到的问题

  • DTS配置完毕，屏幕没有信号输出，经示波器测量，RK3568->RK628D的RGB信号没有。经过RK协助排查，是早期的RK3568-Android11的SDK有BUG所致，CPU没有输出RGB信号，有bug的内核版本为android-11.0-mid-rkr8，升级到最新版本(android-11.0-mid-rkr9.1)后解决

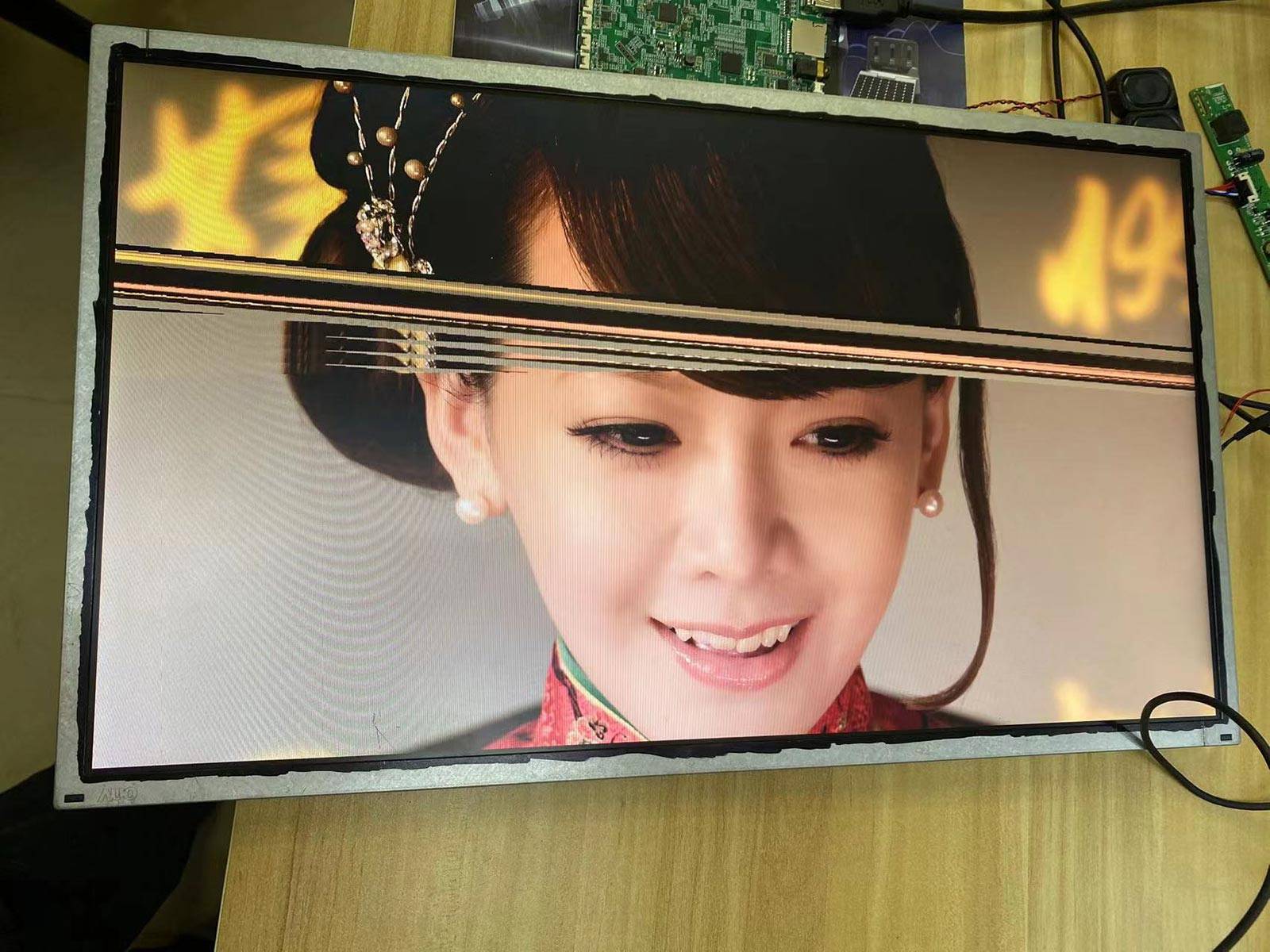

  • 屏幕输出有小部分区域显示异常，如图2所示。经过RK协助排查，为输出时钟频率异常所致，需给内核打上特殊补丁

参考文档

  • RKDocs/common/display/Rockchip_DRM_RK628_Porting_Guide_CN.pdf
  • Rockchip_RK628D_For_All_Porting_Guide_CN_V10.pdf
